View 71 Tempered Glass RGB Plus Edition View 71 Tempered Glass RGB Plus Edition View 71 Tempered Glass RGB Plus Edition View 71 Tempered Glass RGB Plus Edition View 71 Tempered Glass RGB Plus Edition View 71 Tempered Glass RGB Plus Edition View 71 Tempered Glass RGB Plus Edition Thermaltake View 71 TG RGB Plus and View 21 TG RGB Plus Introduction
View 71 Tempered Glass RGB Plus Edition

View 71 Tempered Glass RGB Plus Edition

In stock
P/N
CA-1I7-00F1WN-02
USD$299.99

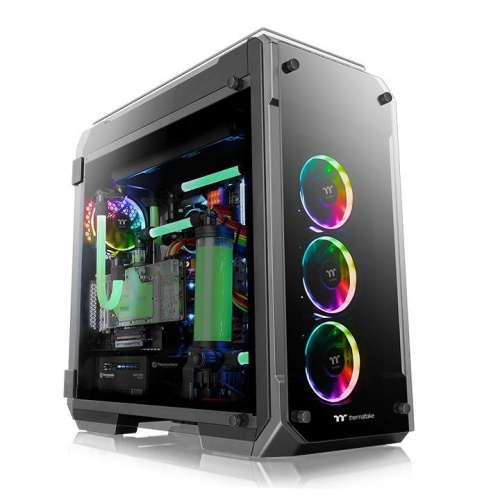

E-ATX full tower case with four tempered glass windows and four preinstalled 120mm Riing Plus 12 RGB fans.



*The image is for reference only.
*Three 120mm Riing Plus 12 RGB front fans and one 120mm Riing Plus 12 RGB rear fan are included.

*Note: Cable management compatibility may vary based on motherboard size and design.
*The image is for reference only.
*Three 120mm Riing Plus 12 RGB front fans and one 120mm Riing Plus 12 RGB rear fan are included.

*PCI-E riser cable is optional.
*VGA width limitation when using with GPU bracket: 68mm (3.4 expansion slot reference).
*The image is for reference only.
*Three 120mm Riing Plus 12 RGB front fans and one 120mm Riing Plus 12 RGB rear fan are included.

*Recommend to use Thermaltake’s all-in-one liquid cooler when applying vertical AIO radiator mounting.
*The image is for reference only.
*Three 120mm Riing Plus 12 RGB front fans and one 120mm Riing Plus 12 RGB rear fan are included.

*The image is for reference only.
*Three 120mm Pure Plus 12 RGB front fans and one 120mm Pure Plus 12 RGB rear fan are included.

*Radiator configurations and compatibility may vary depending on radiator size and thickness.
*The image is for reference only.
*Three 120mm Riing Plus 12 RGB front fans and one 120mm Riing Plus 12 RGB rear fan are included.



More Information
P/N CA-1I7-00F1WN-02
Series View
Model View 71 TG RGB Plus
Case Type Full Tower
Dimension (H x W x D) 592 x 274 x 577 mm
(23.3 x 10.8 x 22.7 inch)
Net Weight 19.3 kg / 42.55 lb
Side Panel 5mm Tempered Glass x 4 (Left & Right & Front & Top)
Color Exterior & Interior : Black
Material SPCC
Cooling System Rear (exhaust) :
120 x 120 x 25 mm Riing Plus RGB fan
(500-1500rpm, 24.7dBA)
Front (intake) :
120 x 120 x 25 mm Riing Plus RGB fan
(500-1500rpm, 24.7dBA) x3
Drive Bays
-Accessible
-Hidden
2.5” x 4 or 3.5”x4 (HDD Rack)
2.5”x 6 or 3.5” x 3
Expansion Slots 8+2
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX)
I/O Port USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Front:
3 x 120mm , 2 x 140mm
Top:
3 x 120mm , 3 x 140mm
Rear:
1 x 120mm, 1 x 140mm
Bottom:
2 x 120mm
Radiator Support Front:
1 x 360mm , 1 x 420mm
Top:
1 x 360mm , 1 x 420mm
Rear:
1 x 120mm, 1 x 140mm
Right:
1 x 360mm, 1 x 420mm
Bottom:
1 x 240mm
Clearance CPU cooler height limitation: 190mm
VGA length limitation: 310mm(With HDD Rack)
          410mm(Without HDD Rack)
PSU length limitation: 220mm (Without Bottom Fan)

User Manual

  • File Name
  • Description
  • Size
  • Version
  • Release Date
  • Manual
  • Multi-language
  • 17.3 MB
  • 2018-09-19

Drivers & Software

  • File Name
  • Description
  • Size
  • Version
  • Release Date
  • TT RGB PLUS Software
  • 1.Fixed the process conflict with DPS G
    2.Support L20 mouse, headphone and mousepad
    3.Fixed the lighting mode error of Floe AIO cooler
    4.Initialize default settings of switching device into "copy"
    5.Optimize boot up error
  • 41.6 MB
  • V 1.2.9
  • 2019-06-28
