Versa H18 Tempered Glass Edition Micro Case Versa H18 Tempered Glass Edition Micro Case Versa H18 Tempered Glass Edition Micro Case Versa H18 Tempered Glass Edition Micro Case Versa H18 Tempered Glass Edition Micro Case Versa H18 Tempered Glass Edition Micro Case

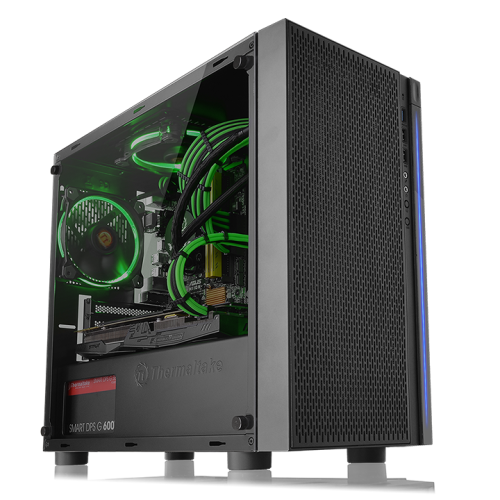

Versa H18 Tempered Glass Edition Micro Case

Versa H18 Tempered Glass Edition Micro Case

In stock
P/N
CA-1J4-00S1WN-01
USD$54.99
Versa H18 TG is a M-ATX micro case with one preinstalled standard 120mm rear fan is included.

  • The image is for reference only.
  • One standard 120mm rear fan is included.
  •

Easy Cable Management
Wiring tangled problem no longer exists with the cable routing gap, hiding cables behind motherboard tray to ensure smoothness for building the system as well as better airflow. Plus, the pre-mounted PSU cover allows the entire bottom area of the case to be used to reorganize unused cables.


  • The image is for reference only.
  • One standard 120mm rear fan is included.
  •
AIO Liquid Cooling Compatible
Supporting all types of AIO liquid cooling solutions, the Versa H18 TG has the capability to accommodate up to one 280mm radiator at the front and one 120mm radiator at the rear.

  • The image is for reference only.
  • One standard 120mm rear fan is included.
  • Radiator configurations and compatibility may vary depending on radiator size and thickness.
  •





More Information
P/N CA-1J4-00S1WN-01
Series Versa
Case Type Micro Case
Dimension (H x W x D) 390 x 205 x 380mm
(15.4 x 8.1 x 15 inch)
Net Weight 5.55 kg / 12.24 lb
Side Panel 4mm Tempered Glass x1
Color Exterior & Interior : Black
Material SPCC
Cooling System Rear (exhaust) :
120 x 120 x 25 mm fan (1000rpm, 16dBA)
Drive Bays
-Accessible
-Hidden
-
2 x 2.5" ; 2 x 3.5”
Expansion Slots 4
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Front:
3 x 120mm , 2 x 140mm
Top:
1 x 120mm, 1 x 140mm
Rear:
1 x 120mm
Radiator Support Front: 1 x 240mm
1 x 280mm
Rear: 1 x 120mm
Clearance CPU cooler height limitation: 155mm
VGA length limitation: 350mm(Without Front Fan)
PSU length limitation: 220mm
