Toughpower iRGB PLUS 850W Platinum - TT Premium Edition Toughpower iRGB PLUS 850W Platinum - TT Premium Edition Toughpower iRGB PLUS 850W Platinum - TT Premium Edition Toughpower iRGB PLUS 850W Platinum - TT Premium Edition Toughpower iRGB PLUS 850W Platinum - TT Premium Edition Toughpower iRGB PLUS 850W Platinum - TT Premium Edition Toughpower iRGB PLUS 850W Platinum - TT Premium Edition
Toughpower iRGB PLUS 850W Platinum - TT Premium Edition

Toughpower iRGB PLUS 850W Platinum - TT Premium Edition

In stock
P/N
TPI-0850F2FDPU-1

Toughpower i Series TPI-0850F2FDP– 850W 80 PLUS® Platinum Certified Full-Modular APFC PSU

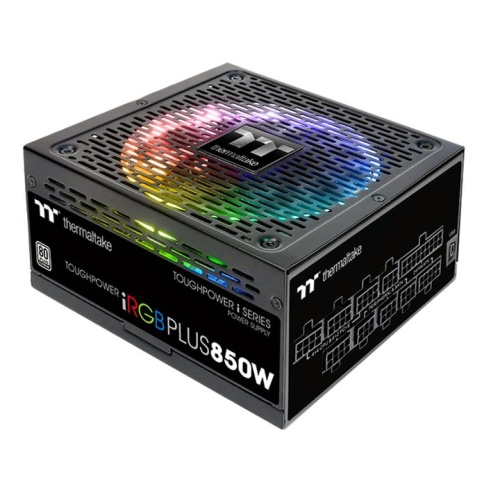

Thermaltake Toughpower iRGB PLUS 850W Platinum - TT Premium Edition

Thermaltake Toughpower iRGB PLUS Platinum Series features a patented 16.8 million colors RGB fan, 12 addressable single LEDs and high-tech components. With the support for three Thermaltake’s intelligent platforms – DPS G PC APP, DPS G Smart Power Management (SPM) Cloud and DPS G Mobile APP– Toughpower iRGB PLUS Platinum Series becomes the world’s first voice controllable digital power supply that enables users to access power supply’s current status, CPU/VGA/RAM key parameters, control over RGB fan lighting mode and fan speed , along with the real-time alerts covering major PSU abnormalities, and eventually save energy and reduce CO2 emission.

* All images are for reference only; actual specification and lighting effects are based on the real product.

What is Smart Power Management (SPM)?

What is Smart Power Management (SPM)? Smart Power Management (SPM) is a cloud-based software that seamlessly integrates three intelligent platforms – DPS G PC APP 3.0, DPS G Smart Power Management Cloud 1.0 and DPS G Mobile APP 1.0 – and compiles key statistics about your PC into detailed charts and breakdowns for your instant PC status view and management. With easy access to SPM through your PC or mobile devices, whether you are outside or indoors, enjoy taking full control of your build anytime, anywhere!

Warning Alert

The SPM platform comes with real-time warning alert function, which will appear on your DPS G Mobile APP/DPS G Smart Power Management Cloud and also your email when fan failure, PSU over temperature (over 140℉/60℃), or abnormal voltage level (over/under 5% of normal level) occurs. Then users can shut down their PC remotely to avoid further damage.

Schedule Shutdown

Save PC energy and electricity cost by scheduling your PC to shutdown at any time you want through DPS G Mobile APP or DPS G Smart Power Management Cloud.

※The photo is for reference.

Shimmering Your Build From Color to Color

The Toughpower iRGB PLUS Platinum Series is the best idea for users to go with when they are looking for an RGB PSU with remarkable functionality and aesthetics in all cases.

Patented 16.8 Million Colors Riing PLUS 14 RGB Fan

The Toughpower iRGB PLUS Platinum Series is installed with a patented circular 16.8 million multi-colored 140mm fan. Users can freely adjust fan speed and customize the lighting effects with DPS G PC App.

Taiwan Patent: 105218791
US Patent Applied
China Patent Applied

12 Addressable RGB LEDs at Your Control

Featuring 12 addressable single LEDs, great light coverage, uniform color and brightness, users are allowed to easily configure the RGB lighting and freely adjust fan speed with Thermaltake DPS G PC App.

Compact Design for Easy Installation

With its short depth of 160mm, Toughpower iRGB PLUS 1050W Platinum gives high compatibility to allow users for more room for cable routing, cooling and more.

New Platform for Better Ripple Noise Performance and Steady Voltage Output

All new circuit design with PFC & LLC digital controllers efficiently reduces ripple noise and gives steady voltage output.

< 30 mV Low Ripple Noise

All ripples are lower than 30mV for high stability on +12V, +5V, or +3.3V from 0% to 100% load to ensure a high quality power supply. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.

Extremely Strict Voltage Regulation < ±2%

The voltage regulation of the PSU is set to no more than ±2% for major rails to meet the highest performance. The strict voltage regulation of the Toughpower iRGB Platinum Series is better than Intel’s standard ±5% for major rails and ±10% for -12V.

100% High Quality Japanese Capacitors

The Toughpower iRGB PLUS Platinum Series features 100% high quality Japanese brand capacitors, which greatly improves the durability and offers the highest stability and reliability.

Fully Modular Cable Design

Fully modular power supply offers cable selection for users while powering the system at an advantageous voltage. Flat cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

Core Component: MCU

Toughpower iRGB PLUS Platinum Series comes with a 32Bit Microcontroller Unit (MCU) from Microchip Technology. The 32Bit MCU is a small computer on a single integrated circuit containing a processor core, memory, and programmable input/output peripherals. MCU can digitally control devices and processes, such as automobile engine control systems and office machines.

Digital Control Board

Digital power supplies sport high-efficiency switching transistors that perform only necessary steps and waste less energy given off as heat. In short, digital power supplies do not dissipate power, which creates waste, and incorporate smaller, lighter transistors. Using smaller parts that work more efficiently enables Thermaltake to craft smaller and lighter power supplies, typically one of the bulkiest components in any PC.

Massive and Dedicated +12V Output

Toughpower iRGB PLUS 850W Platinum is equipped with a powerful single +12V rail, please see the output specification below:

80 PLUS Platinum-Certified and Kaby lake-Ready

Toughpower iRGB PLUS Platinum Series Power Supply with DPS G software delivers up to 94% efficiency under real-world load conditions, promising the lowest power losses. Additionally, this series has been optimized to work with Intel’s new, seventh-generation Kaby lake processors to achieve maximum energy savings.

TT Power VR Ready

Toughpower iRGB PLUS Platinum Series offers stable and sufficient output voltage for multiple VGA cards and high Capability of different VGA cards for VR system.

More Information
P/N TPI-0850F2FDPU-1
watts 850W
RGB Fan Yes
Form Factor ATX
Model TPI-850DH3FCP
Type ATX 12V v2.4 and EPS v2.92
Max. Output Capacity 850W
Peak Output Capacity 1020W
Color Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input Current 12A
Input Frequency Range 50Hz - 60Hz
Input Voltage 100V – 240V~
Operating Temperature 0°C to + 50°C
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20°C to + 70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 14cm hydraulic bearing fan
Efficiency Meet 80 PLUS®Platinum at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/cTUVus/TÜV/FCC/CCC/EAC /S-Mark
PCI-E 6+2pin 6
GAMEZOOM
2019-09-02

 The new and colorful Thermaltake Toughpower iRGB PLUS Platinum 1200W is aimed more at high-end users and technology geeks. The power supply offers a very good technology, high quality workmanship and, following the Eco-Trend, high efficiency. The numerous connection options and the clear DPS software feature complete the power PSU perfectly. Also the selling price goes in view of the offered achievement and quality in order. In short, technologu enthusiasts can easily take a look!

<More>
Nikktech
2019-09-02

With that out of the way the in terms of rail stability and even noise levels the iRGB PLUS 1200W has nothing to be jealous from the GRAND RGB 1200W and vice versa so if you feel that Thermaltake’s SPM is something you could put to good use this was made for you

<More>
Tom's Hardware
2019-09-02

 It'd be nice to see Thermaltake release more high-performance PSUs in the near future. We've mentioned this many times before: it's bad when enthusiasts only have a handful of options at the high-end. More brands vying for the crown leads to stronger competition and better pricing. Thermaltake is a big company with the resources to do things correctly. If its people paid more attention to details, the TPI-1200F2FDP would be much better. For example, the inaccurate power-good signal in this unit is a huge oversight, which TT should fix before the product gets into too many hands. Hopefully, in the next revision of this platform, the problem will be solved. Moreover, Thermaltake should replace the mediocre Chemi-Con KZE cap on its +12V board, which gets quite hot under high loads. That'll notably restrict its already-short lifetime. If you fancy RGB lighting and want a powerful (yet quiet) power supply, then the TPI-1200F2FDP is a decent choice in this competitive category. Its direct competition (Corsair, EVGA, Seasonic, SilverStone) lacks RGB-endowed options, so Thermaltake is practically playing alone in this efficiency class, at least for now.

<More>
TweakPC
2019-09-02

All in all, the Toughpower iRGB PLUS has become a nice power supply that, of course, stands out because of the great RGB fan with its beautiful effects. The price of 180 euros can certainly be described as appropriate for all this. Away from the design, but you get a great power supply with very stable voltages, very high efficiency and otherwise excellent values.

<More>

User Manual

  • File Name
  • Description
  • Size
  • Version
  • Release Date
  • Manual
  • Multi-language
  • 2.1 MB
  • 2017-08-21
  • Manual
  • Multi-language
  • 2.1 MB
  • 2017-08-21

Drivers & Software

  • File Name
  • Description
  • Size
  • Version
  • Release Date
  • TT RGB PLUS Software
  • 1.Fixed TT RGB PLUS sync with X1 RGB keyboard fails issue.
    2.Fixed the for DP100-D5 lighting effect error in Static mode.
    3.Minor bugs fixed and system performance.
  • V 1.3.2
  • 2019-11-13
  • DPS G App
  • MD5: a8a6b8b14f0e692de8cd428102f01f99
  • V3.2.0
  • 2019-09-23
  • Fix Tool
  • If DPS G App opens twice after boot up, download the tool to fix the issue.
    *Please right-click the software and run it in administrator mode.
  • 201
  • 1.0
  • 2018-11-01
