Toughpower iRGB PLUS 850W Gold - TT Premium Edition
Toughpower iRGB PLUS Gold Series (750W/850W/1000W) is the first lineup that packs the patented 16.8 million-color Riing Duo 14 RGB fan with 18 addressable LEDs preinstalled to provide various illumination options. Features premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C. The series supports Smart Power Management, so users get to digitally control the lighting and manage PSU/PC anywhere while stay green. They also work with TT RGB PLUS software, Amazon Alexa and Razer Chroma for countless customizable lighting possibilities.
* All images are for reference only; actual specification and lighting effects are based on the real product.
The SPM platform comes with real-time warning alert function, which will appear on your DPS G Mobile APP/DPS G Smart Power Management Cloud and also your email when fan failure, PSU over temperature (over 140℉/60℃), or abnormal voltage level (over/under 5% of normal level) occurs. Then users can shut down their PC remotely to avoid further damage.
Save PC energy and electricity cost by scheduling your PC to shutdown at any time you want through DPS G Mobile APP or DPS G Smart Power Management Cloud.
※The photo is for reference.

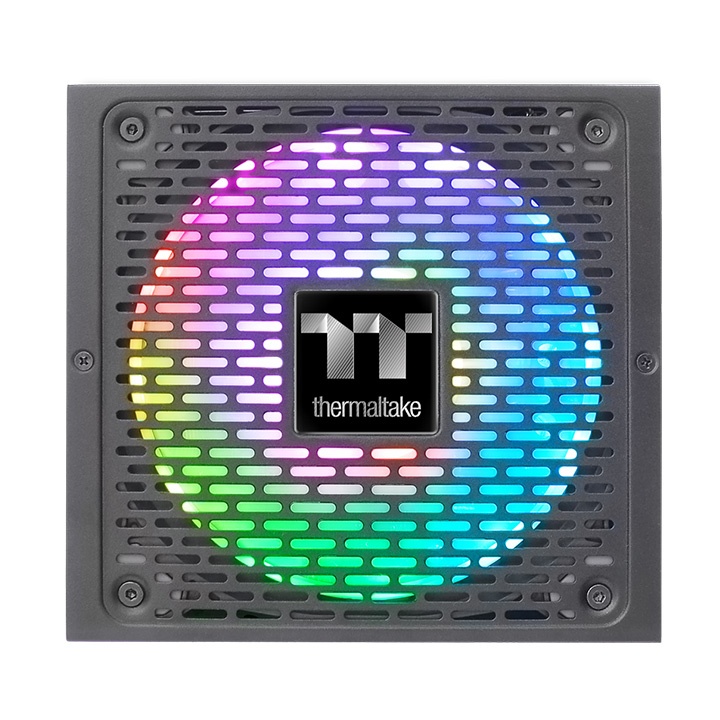

Built-in 16.8 Million Color Riing Duo 14 RGB Fan
The Riing Duo 14 RGB Fan features duo rings with 18 addressable LEDs, great light
coverage, and uniform color and brightness to paint your build with 16.8 million colors. It supports DPS G
PC/Mobile APP, TT RGB PLUS, Amazon Alexa and Razer Chroma for the ultimate synchronization experience.
Taiwan Patent: 105218791
US Patent Applied
China Patent: ZL 201621469674.7
＜ 30 mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure an excellent performance and a reliable operation.
Extremely Strict Voltage Regulation ＜ ±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.
100% High Quality Japanese 105°C/221°F Capacitors
Comes with high quality 105 °C (221 ° F) Japanese capacitors to help improve
the durability and offer impressive stability.
Fully Modular Cable Design
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail and DC to DC design ensure a stable and reliable
supply to other PC components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
TT RGB PLUS Software
2.0 - New version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.
2.0 DOWNLOAD NOW
2.0 USER MANUAL
1.0 DOWNLOAD NOW 1.0 LEARN MORE
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer Chroma ecosystem, Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling system and Razer gaming gear!
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to the Alexa-enabled devices.
|Type||ATX 12V v2.4 and EPS v2.92|
|Max. Output Capacity||850W|
|Peak Output Capacity||1020W|
|Dimension ( W / H / D )||150mm(W) x 86mm(H) x 160mm(D)|
|PFC (Power Factor Correction)||Active PFC|
|Power Good Signal||100-500 msec|
|Hold Up Time||> 16msec at 100% of full load|
|Input Frequency Range||50Hz - 60Hz|
|Input Voltage||100V – 240V~|
|Operating Temperature||0°C to + 50°C|
|Operating Humidity||20% to 90%,non-condensing|
|Storage Temperature||-20°C to + 70°C|
|Storage Humidity||5% to 95%, non-condensing|
|Cooling System||14cm hydraulic bearing fan|
|Efficiency||Meet 80 PLUS®Gold at 115Vac input.|
|MTBF||120,000 hrs minimum|
|Safety Approval||CE/cTUVus/TUV/FCC/EAC /S-Mark|
