Toughpower Grand RGB 850W Platinum

Toughpower Grand RGB 850W Platinum

In stock
SKU
TPG-0850F1FAP

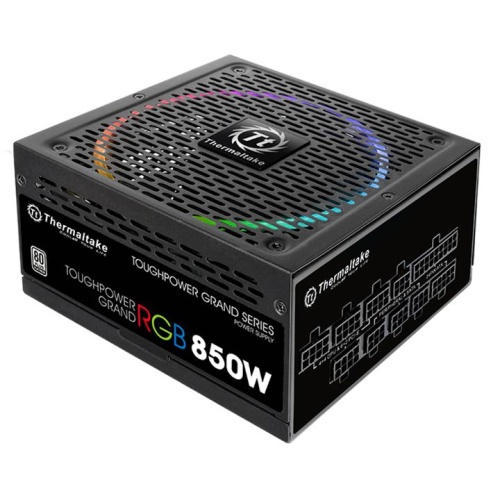

Toughpower Grand Series TPG-850F1FAP–850W 80 PLUS® Platinum Certified Fully Modular APFC PSU

* All images are for reference only; actual specification and lighting effects are based on the real product.

※The photo is for reference.

* All images are for reference only; actual specification and lighting effects are based on the real product.

More Information
P/N TPG-0850F1FAPU-1
watts 850W
RGB Fan Yes
Form Factor ATX
Max. Output Capacity 850W
Peak Output Capacity 1020W
Color Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input Current

12A

Input Frequency Range 50Hz - 60Hz
Input Voltage 100V – 240V~
Operating Temperature 0°C to + 50°C
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20°C to + 70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 14cm hydraulic bearing fan
Efficiency Meet 80 PLUS®Platinum at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/cTUVus/TÜV /FCC/CCC/EAC /S-Mark
PCI-E 6+2pin 6
Protection OVP, SCP, OPP, UVP, OTP,OCP
Tom's Hardware
2019-09-02

 A truly high performance PSU with the right price tag. What more to ask from Thermaltake? Probably a little better polymer cap selection, a bit higher efficiency under light loads and a proper power ok signal; and just for the case, a lower OCP level at 5VSB. At this price point it is very hard to find something equally good, featuring also RGB lighting.

<More>
Jonny Guru
2019-09-02
What Thermaltake has here is a reasonably priced 80 Plus Platinum unit that comes with just enough performance to make darn near anyone happy. Current stock issues aside for anything over a thousand watts, it's going to be a pretty easy buying decision for anyone looking at this unit, because there's no real reason not to. Even if you don't care about that RGB fan. <More>

User Manual

  • File Name
  • Description
  • Size
  • Version
  • Release Date
  • Manual
  • Multi-language
  • 4.3 MB
  • 2017-09-07
