Toughpower GF1 850W - TT Premium Edition

Toughpower GF1 850W - TT Premium Edition

In stock
SKU
PS-TPD-0850FNFAGx-1

80 PLUS Gold certified fully modular PSU with Hydraulic Bearing fan.

Scrollama: Basic Example

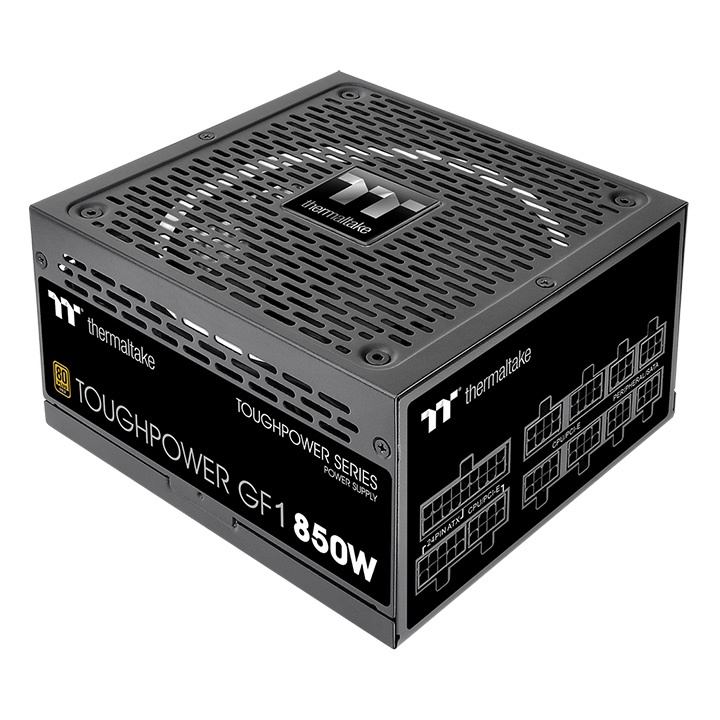

Toughpower GF1 850W - TT Premium Edition

The fully modular Toughpower GF1 series is available in 650W - 850W models and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.

※The photo is for reference.

  • Durable Chassis

  • Anti-Vibration Mounting System

  • DC to DC Design

  • Modular Cable Management

  • Side Ventilation Design

  • Concentrated Compression Fan Blade

  • 100% High Quality Japanese 105°C / 221°F Capacitors

  • Zero Cable Platform

Zero Cable Platform

Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

Ultra Quiet 140mm Hydraulic Bearing Fan

Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

<30mV Low Ripple Noise

All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation <±2%

The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

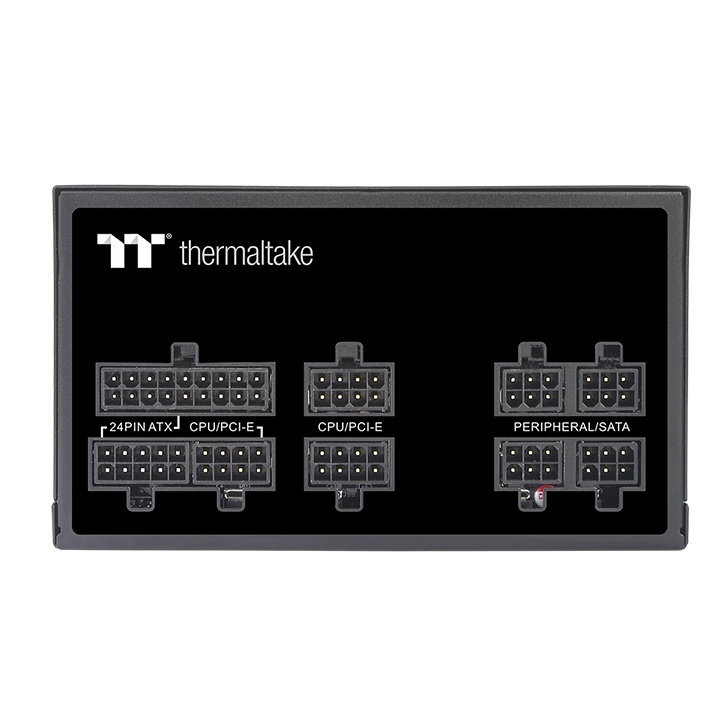

Fully Modular Low-Profile Flat Cable

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

Premium Japanese 105°C/221°F Capacitors

Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Gold Certified and Intel C6/C7 States Ready

Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

More Information
P/N PS-TPD-0850FNFAGU-1
watts 850W
Form Factor ATX
Model TTP-850AH3FCG
Max. Output Capacity 850W
Peak Output Capacity 1020W
Color Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input Current 12A
Input Frequency Range 50Hz - 60Hz
Input Voltage 100V – 240V~
Operating Temperature 0°C to + 50°C
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20°C to + 70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 14cm hydraulic bearing fan
Efficiency Meet 80 PLUS®Gold at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/cTUVus/TÜV SÜD/FCC/BSMI/EAC
PCI-E 6+2pin 6
Protection OCP, OVP, UVP, OPP, SCP, OTP
