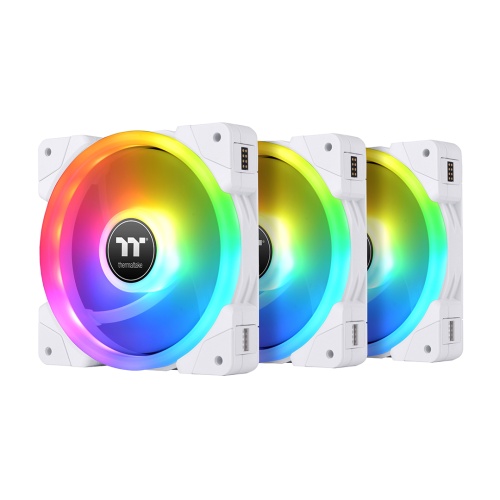

SWAFAN EX12 RGB PC Cooling Fan White TT Premium Edition (3-Fan Pack)

SWAFAN EX12 RGB PC Cooling Fan White TT Premium Edition (3-Fan Pack)

Out of stock
P/N
CL-F161-PL12SW-A
USD$109.99
SWAFAN EX incorporates a new magnetic force design for quick connection among fans with its 12 V cable and at the same time keeping the swappable fan blade design. Daisy-chaining up to 3 fans per cable improves fan connection efficiency and convenience while enhancing cable management for PC building.

Quick Connect with Magnetic Force Design

The magnetic force design is used on the 12V cable core and the fans to achieve quick connection. Simply placing the cable to the fan or having the fans lying side by side, the magnet connectors will instantly draw the fan frames together while keeping them in place, thus powering and lighting up the fans by daisy-chaining them. This design keeps the assembly process simple while reducing installation time, making this fan more user-friendly and bringing extra fun while building your PC.

Caution: Due to safety and software limitations, SWAFAN EX is only recommended to daisy-chain 3 fans per cable.

Say Goodbye to Most of Your Cables

Eliminate cable usage and stray away from crazy cable management by using this Magnetic Force Quick Connect Design fan. You only need to connect one cable to power up three fans at once, making PC building even faster and easier.

Click to see the difference:



L
o
a
d
With SWAFAN EX

Without SWAFAN EX


Easily Show off Your RGB Lighting

Two independent LED rings with 20 LEDs allows you to create your own lighting patterns with the TT RGB PLUS 2.0 software.

TT RGB PLUS 2.0 Software

The new version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.

Caution:
TT RGB PLUS and TT RGB PLUS 2.0 will overwrite one another; users can only install one version of TT RGB PLUS 1.0 or 2.0.
This product only supports TT RGB Plus 2.0.

DOWNLOAD NOW DOWNLOAD USER MANUAL

NeonMaker

The NeonMaker is a new and innovative approach to adjusting the RGB lighting on the some of our products, allowing users to customize lighting profiles and orchestrate their own light shows.
Personalize Riing Quad Fans, Riing Trio Fans, Distro Case, Floe DX RGB AIO, and TOUGHRAM RGB with NeonMaker!

NEONMAKER MICROSITE DOWNLOAD NEONMAKER

More Information
P/N CL-F161-PL12SW-A
Fan Dimension 120 x 120 x 25 mm
Interface USB 2.0 connectors (9 Pin)
System compatibility Windows 10 /11
Fan Started Voltage 9.0 V
Fan Rated Voltage 12 V
Rated Current 0.27A (only one fan)
Power Input 3.24 W (only one fan)
Fan Speed 500 ~ 2000 R.P.M
Max. Air Pressure Fan Blade 1 : 2.39 mm-H2O (only one fan)
Fan Blade 2 (Reverse) : 2.02 mm-H2O (only one fan)
Max Air Flow Fan Blade 1 : 57.11 CFM (only one fan)
Fan Blade 2 (Reverse) : 56.26 CFM (only one fan)
Noise Fan Blade 1 : 30.5 dB-A (only one fan)
Fan Blade 2 (Reverse) : 32.5 dB-A (only one fan)
Bearing Type Hydraulic Bearing
Life Expectation 40,000 hrs,25℃
