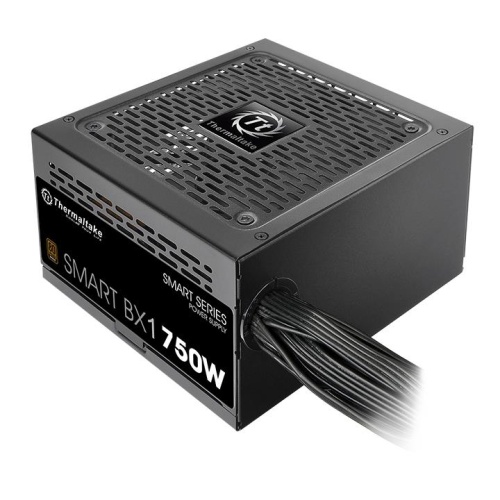

Built to deliver 80 PLUS Bronze with 88% power efficiency, the Smart BX1 series is available in 450W - 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40℃, near silent operation and reliable performance. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.
Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior
and near silent operation.
All ripples are lower than 80mV on +12V, and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components, such as high-end graphics cards, to function reliably for longer.
Providing great durability as well as offering the highest stability, while remaining reliable.
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
Soft black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages
80 PLUS Gold Certified and Intel C6/C7 States Ready
Smart BX1 series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
|Type||ATX 12V v2.3 and EPS v2.92|
|Max. Output Capacity||750W|
|Peak Output Capacity||900W|
|Dimension ( W / H / D )||150mm(W) x 86mm(H) x 140mm(D)|
|PFC (Power Factor Correction)||Active PFC|
|Power Good Signal||100-500 msec|
|Hold Up Time||> 16msec at 70% of full load|
|Input Current||12A max.|
|Input Frequency Range||50Hz - 60Hz|
|Input Voltage||100V – 240V~|
|Operating Temperature||5°C to + 40°C|
|Operating Humidity||20% to 85%, non-condensing|
|Storage Temperature||-40°C to + 55°C|
|Storage Humidity||10% to 95%, non-condensing|
|Cooling System||12cm Hydraulic bearing fan|
|Efficiency||Meet 80 PLUS®Bronze at 115Vac input.|
|MTBF||100,000 hrs minimum|
|Safety Approval||CE/CB/TUV/ UL/ FCC/ BSMI|
