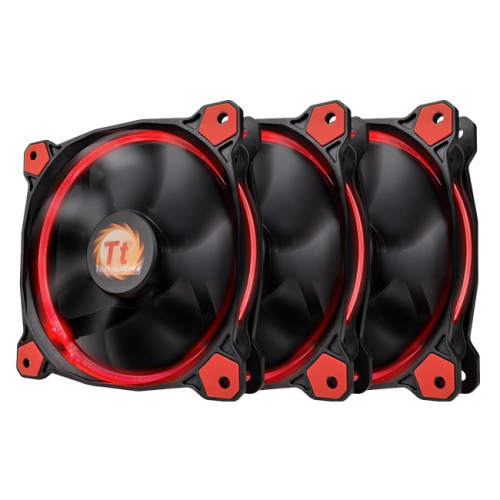

Riing 12 High Static Pressure LED Radiator Fan (3 Fans Pack)
Thermaltake combines the patented LED light with cutting-edge technology to deliver a brand new experience of using PC cooling, Thermaltake Riing 12 LED Radiator Fan. A 120mm high-static pressure fan with a patented LED ring, the Riing 12 LED Series features compression blades for impressive cooling performance, hydraulic bearing with ultra-silent design, and anti-vibration mounting system. Cool your system with high performance Thermaltake Riing 12 LED Series!
US Patent : US9,506,663
Thermaltake Riing Fan Product Animation
Tt LCS Certified
“Tt LCS Certified” is the hallmark that ensures first-class performance from the best features and fitment. A certification exclusive to Thermaltake, it sets the benchmark for all true LCS chassis and is applied only to products that meet our stringent design standards for delivering what hardcore enthusiasts demand. The Tt LCS certification is a way for Thermaltake to designate to all power users the chassis which have been tested for best compatibility with extreme liquid cooling configurations.
Thermal Image Test
Compared to the standard case fan, the combination of three Riing 12 radiator fans and RL360 radiator delivers 40% better cooling performance. (Inlet and outlet temp. are 49℃ and 44.5℃ in respective, △T= 4.5℃).
Concentrated Compression Blade
Custom designed for high-static pressure requirements of demanding applications such as radiators, the Concentrated Compression Blade (CCB) is engineered to focus the inner weaker circle of air outwards, allowing the outer section to pressurize and compress the air.
Wind Blocker Frame
To achieve maximum cooling performance in all applications, the wind blocker frame is designed to direct airflow towards the middle section of the blade, thereby creating a compression effect and blocking any air from escaping. This special design reduces the blade’s noise and vibration, creating a perfect balance between power and sound.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit. The LNC (Low-Noise Cable) can reduce the noise level by 24% from 24.6dBA to 18.7dBA.
Anti-Vibration Mounting System
In-mold injection anti-vibration rubber pads provide a hassle-free usage with 80% protection coverage for all corners.
Four colors of the Patented LED Versions Available
Riing 12 LED Series (3 Fans Pack) is also available with different LED versions (red, blue, green, and white), adding cooling aesthetics to the chassis.
|Fan Dimension||120 x 120 x 25 mm|
|Started Voltage||9.0 V|
|Rated Current||0.2 A|
|Rated Voltage||12 V|
|Power Input||2.4 W|
|Fan Speed||1500 R.P.M
1000 R.P.M (with LNC)
|Max. Air Pressure||2.01 mm-H2O|
|Max Air Flow||40.6 CFM|
18.7 dB-A (with LNC)
|Bearing Type||Hydraulic Bearing|
|Life Expectation||40,000 hrs,25℃|
|Connector||3 PIN + LNC (Low-Noise Cable)
