Pacific RL360 Plus RGB Radiator

Pacific RL360 Plus RGB Radiator

SKU:CL-W182-AL00SW-A

Regular price $109.99 USD
Regular price Sale price $109.99 USD
Sale Sold out

High-performance 360mm radiator with flat tube design and a software-controlled 16.8 million colors LED strip.

View full details
  • Design
  • Specification
  • Download
  • How-to Videos

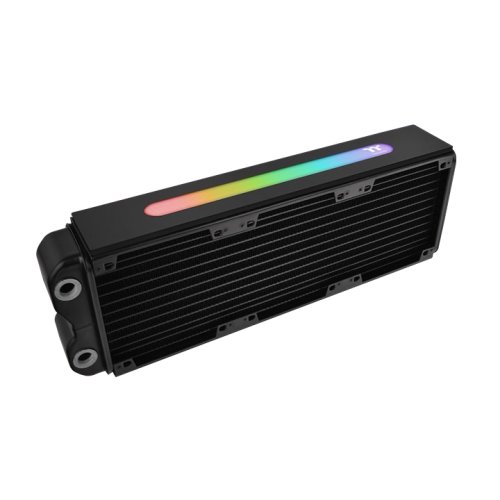

Thermaltake Pacific RL360 Plus RGB Radiator

The Pacific RL360 Plus RGB Radiator is a high-performance 360mm radiator which utilizes the advanced thermal technique with a software-controlled 16.8 million colors LED strip.Built for 120mm high-static pressure fans,the radiator is manufactured from premium-quality German zinc alloy aluminum and aerospace-grade materials that provide exceptional performance,unrivalled reliability.Integrated G1/4" threads make it easy to install, while rigid connections ensure leak-resistant measures are in place. With an ideal mounting, fitting and flow set-up, the Pacific RL360 Plus RGB Radiator meets your cooling needs in every way.

*The image is for referecne only.

Tt LCS Certified

“Tt LCS Certified” is the hallmark that ensures first-class performance from the best features and fitment. A certification exclusive to Thermaltake, it sets the benchmark for all true LCS chassis and is applied only to products that meet our stringent design standards for delivering what hardcore enthusiasts demand. The Tt LCS certification is a way for Thermaltake to designate to all power users the chassis which have been tested for best compatibility with extreme liquid cooling configurations.

TT RGB PLUS

TT RGB PLUS Ecosystem is the intelligent lighting system for PCs that combines the most advanced addressable LED lighting with Thermaltake’s patented TT RGB PLUS Software. TT RGB PLUS ecosystem provides nearly unlimited possibilities for playing with colors, synchronizing lights to games, music, CPU temperatures or other TT RGB PLUS products, including case fans, CPU/VGA waterblocks, AIO CPU coolers, PSUs, LED strips and peripherals. The patented software allows users to change the light modes, colors, speeds, brightness, fan speeds, and even supports AI voice control in iOS and Android devices.
Learn More

Patented TT RGB PLUS Software & App

Monitor the fan performance, adjust the fan speeds, and customize the lighting effects for Thermaltake Plus RGB liquid cooling products with the patented TT RGB PLUS Software and an exclusively designed mobile app. Choose a function from below and scroll down to read the details.

Taiwan Patent: 105216989

Learn More Download TT RGB Plus Software


*Compatibility:
- For desktop: Requires TT RGB PLUS Software 1.1.5 version or later.
- For iOS: Requires iOS 10.0 or later.
- For Android: Requires Android 6.0.0 or later with screen resolution 1920 x 1080.

SyncALL, Say “Hello TT” Thermaltake AI Voice Control

Talking to TT RGB PLUS App is an easier, faster way to set lights for your systems. You can ask it to turn the lights on or off, switch lights modes, dim the lights, change light colors, or adjust lights speeds or fan speeds.
Download Voice Input Command
- For desktop: Requires TT RGB PLUS Software 1.1.5 version or later.
- For iOS: Requires iOS 10.0 or later.
- For Android: Requires Android 6.0.0 or later with screen resolution 1920 x 1080.

Profiles

Conveniently control all devices and customize the lights at the same time by setting up to five profiles for each controller. Each controller your system connected is displayed at the top left of the interface for you to quickly access. Within each profile, you can check which device is set to what operating mode and lighting effect. You can even “SAVE” and apply the settings to other controllers your system is running.

Fan Speeds

Simply drag the slider bar to adjust your fan speed RPM on a dedicated control panel. The software is also included a number of preset fan modes that allow you to set the fans to ‘Silent Mode’ where the RPM performs between a 500 – 1500 RPM range, or ‘Performance Mode’ which operates and dynamically adjusts all the way up to 1500 RPM. Besides running at the optimal RPM range, you can customize the speed by disabling PWM.

Fan Alert

The software offers real-time fan warning alerts when performance operating issues have emerged. The control panel of the failed fan will be grey out, so you can quickly identify which fan is causing issues.

Color Palette

Immediately personalize your lighting with the recommended color palette. You can change colors and brigthness for the LED ring which featrues 16.8 million colors, or 12 single LEDs where the lights can be adjusted individually. You also can let each LED display a specific color. Press”Color”, enter the decimal color coded, and then save it.

Light Modes

Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).

Copy Color–Seamlessly transfer lighting effects of the first fan across to other fans.

Light Modes

Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).

Full Lighted–A static lighting with your color choice,including RGB colors and single color.

Light Modes

Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).

Sound Control–Sync lights with your favorite music that is imported from your PC,and see how they react to the beat.

Light Modes

Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).

Flow–Directional RGB colored flow across the individual LED of the ring.

Light Modes

Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).

RGB Spectrum–A seamless transition through the entire 16.8 million RGB color spectrum.

Light Modes

Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).

Ripple–Lights ripple out across the entire fan with your choice of 16.8 million colors.

Light Modes

Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).

Blink–Lights keep flashing on and off with single color or RGB colors.

Light Modes

Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).

Pulse–A slow fade in and fade out with your color choice.

Light Modes

Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).

Wave–A RGB wave flows across the entire fan.

Light Modes

Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).

Cross–Lights flow in opposite directions with single color or RGB colors.

Thermal

Make your CPU temperature visible,and track it easily.The software has a built-in temperature sensor that detects and displays changes in CPU temperature in real-time.The LED ring offers an additional visual cue.The color corresponds to the temperature,ranging from blue(CPU temperaure≦40℃)to Red(CPU temperature≧65℃).

Thermal

Make your CPU temperature visible,and track it easily.The software has a built-in temperature sensor that detects and displays changes in CPU temperature in real-time.The LED ring offers an additional visual cue.The color corresponds to the temperature,ranging from blue(CPU temperaure≦40℃)to Red(CPU temperature≧65℃).

Exclusive LED Strip Design

Controlled by the patented TT RGB PLUS Software and the app,the built-in LED strip features great light coverage,uniform color and brightness,and 12 addressable LEDs sets(two single LEDs per set)that can paint your build with 16.8 million colors.


*The LED strip is recommended for use on Pacific RL360 Radiator.

*The image is for referecne only.

Digital Lighting Controller

The controller is designed with a DIP switch on the back.Hence,you can set a number for each controller easily.You can add up to 5 devices to one lighting controller and up to 16 controllers to the software.The controller and the coding guide are included in all packs.

*It is recommended to connect up to 3 controllers on one peripheral cable(Molex)only.

Optimized Heat Dispatching

The radiator is optimized for efficiently pulling heat away from the power-dissipating components thus achieving maximum heat dissipation at both low and high airflow operation.After brazing,the fin and tube connect to form a joint,thereby creating uniform heat transfer.The radiator is capable of delivering an average heating load of 32℃-35℃,bring new levels of cooling performance and reliability to any watercooled PC.

Dual-Row Tubes

To assure the best thermal capacity and increase heat transfer,the radiator is engineered with an extremely thick 64mm radiator along with a double-row 13-set flat tube design.This technique allows that water flows down on the one side,and then passes across the bottom chamber before circulating back to the other side of the radiator.

High-Density Fin Design

Fin density is optimally designed to accommodate high air pressure.The performance improves significantly with increased fan speed,offering superior cooling efficiency during operation.

German-Made Anti-Corrosion Materials

Without compromise,the radiator is designed with high-quality German aerospace-grade materials and constructed with zinc,the most common anti-corrosion agent.Although this protection will gradually degrade as the zinc corrodes away over time,it provides the best means to reduce electronic conductivity and can withstand scratches to the zinc layer.Corrosion potentials of zinc alloy aluminum can be reduced by 55.6%after brazing.

High-Quality Manufacturing Process:Brazing

An exceptional manufacturing process using high temperature brazing at 1022℉/550℃sets the radiator in a class of its own.This technique allows for impurities to be kept out of the brazing process,ensuring that full strength on all the connected areas is achieved.The radiator is baked through a controlled atmosphere brazing line.The materials melt into each other to accomplish optimal thermal transfer from the tubes to the actual fins in order to attain better heat evacuation.

Remarkable Expansion

Made for hardcore PC enthusiasts to enjoy the ultimate in custom configurations,the Pacific RL360 Plus RGB Radiator supports 120mm fans,and allows users to build up aesthetically-superior watercooled systems by allocating the radiator to each particular component as well as incorporating externally-modular upgrades for their chassis.

TT RGB PLUS Software

2.0 - New version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.

2.0 DOWNLOAD NOW 2.0 USER MANUAL
1.0 DOWNLOAD NOW   1.0 LEARN MORE

Sync with Razer Chroma Lighting

All Thermaltake TT RGB PLUS products are able to connect into the Razer Chroma ecosystem, Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling system and Razer gaming gear!

LEARN MORE

TT AI Voice Control

Give you full control over the TT RGB PLUS products with your voice. “SyncALL, Say”Hello TT”.

Note: TT AI Voice control, Razer Chroma and Amazon Alexa requires the use of at least one TT RGB PLUS software-enabled product to function.

Works with Amazon Alexa

All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to the Alexa-enabled devices.

LEARN MORE

Cautions

Thermaltake recommends the following steps to be taken before using the Pacific series radiators and water blocks

  • To ensure a clean loop, flush and rinse your radiators and water blocks with distilled water prior to use.
  • Do not use tap water or distilled water as your coolant, it may harm your loop and reduce performance.
  • It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while protecting the entire liquid loop from corrosion.
  • Before storing your water cooling components, please clean, rinse and dry. This will ensure a longer lifespan for your components.

Thermaltake recommends the following steps to be taken after completing your water loop setup

  • It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000. It offers great performance while preventing the entire cooling system – copper, brass, nickel, aluminum, and steel – from corrosion.
  • Fill the reservoir with coolant and cycle the power on and off several times while the pump pushing the coolant into the loop.
  • DO NOT let the pump run dry, when there is no liquid entering the pump turn off your power immediately
  • Fill the reservoir to the top as it will prevent air from going into the pump
  • If necessary tilt the system slightly from side to side to bleed the air out of the loop.
  • Place some paper towels under fittings and joining points to test for leaks.
  • Run the loop with the fill port open for about 24 hours to completely bleed the air out of the loop.
  • Before starting, flush out your system correctly to prevent any coolant or unwanted particles sticking to your tubes, radiators and other cooling components.
  • Coolant might fade over time.
