Thermaltake H200 TG Snow RGB ATX Mid Tower Chassis is designed with the concept of clean, simple, and sleek look which can fulfill basic but important needs from PC builders.
-
Design
-
Specification
-
Download
-
How-to Videos
The H200 TG Snow RGB is designed for PC builders who want a clean and sleek look but crave for good cooling performance and tempered glass at the same time. The H200 TG Snow RGB is a standard mid-tower chassis with motherboard support up to ATX. It comes with one preinstalled standard 120mm fan, and an RGB button that can switch between 19 lighting modes. Brining you an exteriorly simple look and internally sophisticated design.
- The image is for reference only.

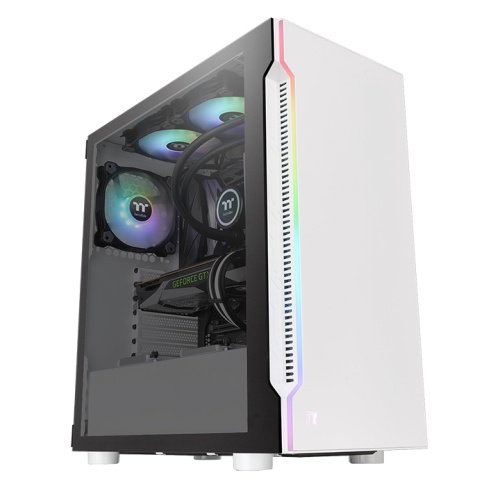

With an unique RGB light bar, the front panel of H200 TG Snow RGB presents a smooth and elegant style.
Comes with a full-length PSU cover with a ventilated design to enhance the airflow and hide those unsightly cables.
The tempered-glass hinge door is designed with a smart lock security system which secures the inner components of your case. H200 TG Snow RGB is built to be more durable, scratch resistant and, of course, easy-to-use.
The H200 TG Snow RGB has outstanding expandability with support for a tower CPU cooler with maximum height 180mm, a dual VGA expansion slot of up to 320mm in length, and a power supply with length of up to 160mm (with 3.5” HDD Drive installed) and up to 220mm otherwise.
- The image is for reference only.
Optimized for excellent cooling capability with one 120mm fan preinstalled. The case is able to house up to dual 140mm or three 120mm front fans, up to 2x 140mm fans on top, and a radiator size up to 240mm on top to allow users to build a desired high-end system.
- The image is for reference only.
Two 3.0 USB ports on top of the front panel grants direct access when needed. A specially designed RGB control button provides users 19 different light effect selections.
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Front | ● | ● | - | ● | ● | - |
| Top | ● | ● | - | - | - | - |
| Rear | - | - | - | - | - | - |
(Water 3.0 and Floe series)
| Perform | Pro | 240 Series | 360 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | - | ● | ● |
| Top | ● | ● | ● | - | - | - |
| Rear | ● | ● | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 2 | - |
| Top | 2 | 2 | - |
| Rear | 1 | 1 | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | - |
| LUNA FAN Series | ● | ● | - |
| Riing FAN Series | ● | ● | - |
| P/N | CA-1M3-00M6WN-03 |
|---|---|
| Model | H200 TG Snow RGB |
| Series | H Series |
| Case Type | Middle tower |
| Dimensions | 454 x 210 x 416mm (17.9 x 8.3 x 16.4 inch) |
| Weight | 7.4 kg / 16.31 lbs |
| Side Panel | 4mm Tempered Glass x1 (Left) |
| Color | Exterior & Interior : White |
| Material | SPCC |
| Cooling System | Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16dBA) |
| Drive Bays | - 2 x 3.5’’ or 3 x 2.5’’ |
| Expansion Slots | 7 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.0 x 2, HD Audio x 1, RGB Button x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm , 2 x 140mm Top: 2 x 120mm , 2x 140mm Rear: 1 x 120mm , 1 x 140mm |
| Radiator Support | Front: 1 x 240mm , 1 x 280mm Top: 1 x 240mm |
| Clearance | CPU cooler height limitation: 180mm VGA length limitation: 320mm |
