Divider 200 TG Air Snow Micro Chassis Divider 200 TG Air Snow Micro Chassis Divider 200 TG Air Snow Micro Chassis Divider 200 TG Air Snow Micro Chassis Divider 200 TG Air Snow Micro Chassis Divider 200 TG Air Snow Micro Chassis
Divider 200 TG Air Snow Micro Chassis

Divider 200 TG Air Snow Micro Chassis

Out of stock
P/N
CA-1V1-00S6WN-01
USD$149.99

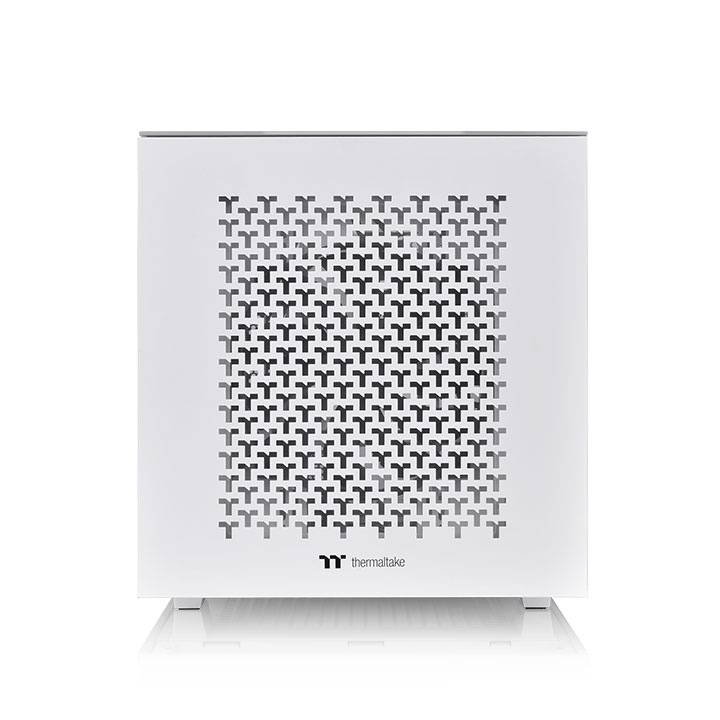

The Divider 200 TG Air Snow is a Micro-ATX case that comes with one preinstalled 200mm front fan, one 120mm standard rear fan, two durable 3mm tempered glass windows on the top and left side.

Thermaltake

Divider 200 TG Air Snow

Showcase Your System in a Particular Way

Divider 200 TG Air Snow Micro-ATX Chassis

Thermaltake designed a brand-new case series that contains a mixture of open-frame-styled elements and customizable options blending all the functionalities into the Divider Series. The Divider 200 TG Air Snow is a Micro-ATX case to the Divider Series. Just like the other models, the most exceptional feature of the Divider 200 TG Air Snow is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left side. On top of that, the air edition comes with one airflow-optimized mesh panel at the front for massive airflow. These panels are tool-free and easy to remove, showcasing components inside. Additionally, the Divider 200 TG Air Snow comes with one preinstalled 200mm front fan and one 120mm standard rear fan to ensure outstanding cooling performance. Lastly, the Divider 200 TG Air Snow has a chamber design with a flat motherboard tray that lets a user better doing cable management, while showing off hardware at the top. The Divider 200 TG Air Snow Micro Case is the next-gen gaming PC case for users, enthusiasts, and gamers who are craving a micro case, giving them unprecedented satisfaction.


* The image is for reference only.

Avant-Grade Style Side Panels with Tempered Glass Windows

The exceptional feature of the Divider 200 TG Air Snow is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left side. On the right side, the two triangular steel panels are designed with a large venting mechanism for air intake or exhaust depends on a user’s preference when building a PC. All of them are tool-free and easy to remove. Divider 200 TG Air Snow comes with two sturdy 3mm tempered glass windows on the top and at the right, showcasing components inside the system. Tempered glass windows are thicker and more scratch-resistant compared to standard acrylic.




  • The image is for reference only.
  •
Excellent Dust Filtration

The Divider 200 TG Air Snow has well-designed removal magnetic fan filters on the right side and inner bottom. At the front and bottom, the removable filters provide excellent dust protection and dirt reduction, ensuring a dust-free environment.


* The image is for reference only.
Air Intake and Exhaust

The cooling performance of the Divider 200 TG Air Snow is excellent. The front mesh panel, air vents on the two sides of the front mesh panel and top tempered glass, and the vent between two triangular pieces of tempered glass and steel panels on the left side allow optimal air intake. Cooling exhausts are located at the rear of the case. On the right side, the two triangular steel panels are designed with a large venting mechanism for air intake or exhaust depends on the user’s overall PC layout design.


* The image is for reference only.
Idle and Full-load Temperature

To let our customers better understand the thermal performance of the Divider 200 TG Air Snow Micro ATX Case, we ran a test system at idle and full-load. We used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running at the same time for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.

Specification

Motherboard ASUS ROG MAXIMUS XI GENE
CPU Intel® Core™ i5-9600K (TDP 95W)
GPU MSI GeForce RTX™ 3090 VENTUS 3X 24G OC
RAM Floe RC240 CPU & Memory AIO Liquid Cooler (Four sticks of DDR4 3200 8G)
PSU Toughpower GF2 ARGB 650W
CPU Cooler Floe RC240 CPU & Memory AIO Liquid Cooler
Fans Pure ARGB 120mm fans up to 4 (Front x 3, Rear x 1)
Software AIDA64 Extreme Portable, FurMark ASUS ROG Edition
Full load 30 min
Camara Testo 885-2 Thermal Imaging Camera
  • Idle
    Full-load

Excellent Hardware Support & Cooling Solution
The Divider 200 TG Air Snow has an excellent hardware expansion. It can support a CPU cooler with a maximum height of 185mm, VGA with maximum length of 340mm (without radiator), a power supply with a length of up to 200mm (without bottom fan), total of three 3.5” HDDs and three 2.5” SSDs or a total of six 2.5” SSDs. When it comes to the cooling solution, the Divider 200 TG Air Snow is preinstalled with one 200mm non-RGB front fan for cold air intake and one 120mm standard rear for hot air extraction. The case can hold up two 140mm fans at the front and two 140mm fans on the right. Moreover, the Divider 200 TG Air Snow is optimized for air cooling and advanced AIO liquid cooling components. It can support AIO 280mm at the front and on the right.
  • 120mm
  • 140mm
  • 200mm
  • 120mm
  • 140mm
  • 240mm
  • 280mm






More Information
P/N CA-1V1-00S6WN-01
Series Divider
Model Divider 200 TG Air Snow
Case Type Micro Case
Dimension (H x W x D) 364.7 x 333.2 x 425.7 mm
(14.4 x 13.1 x 16.8 inch)
Net Weight 8.97 kg / 19.78 lbs.
Side Panel 3mm Tempered Glass x 2
Color White
Material SPCC
Cooling System Front (intake):
200 x 200 x 30 mm standard fan (800rpm, 13dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm fan (1000rpm, 16 dBA) x 1
Drive Bays
-Accessible
-Hidden

3 x 3.5’’, 3 x 2.5’’
or 6 x 2.5”
Expansion Slots 5
Motherboards 6.7” x 6.7” (Mini ITX) , 9.6” x 9.6” (Micro ATX)
I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Front:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
1 x 200mm
Right:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Rear:
1 x 120mm, 1 x 140mm
Bottom:
2 x 120mm, 1 x 120mm
Radiator Support Front:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear:
1 x 120mm
Clearance CPU cooler height limitation:
185mm
VGA length limitation:
310mm (With 27mm radiator)
340mm (Without radiator)
PSU length limitation:
180mm (With Bottom Fan)
200mm (Without Bottom Fan)
