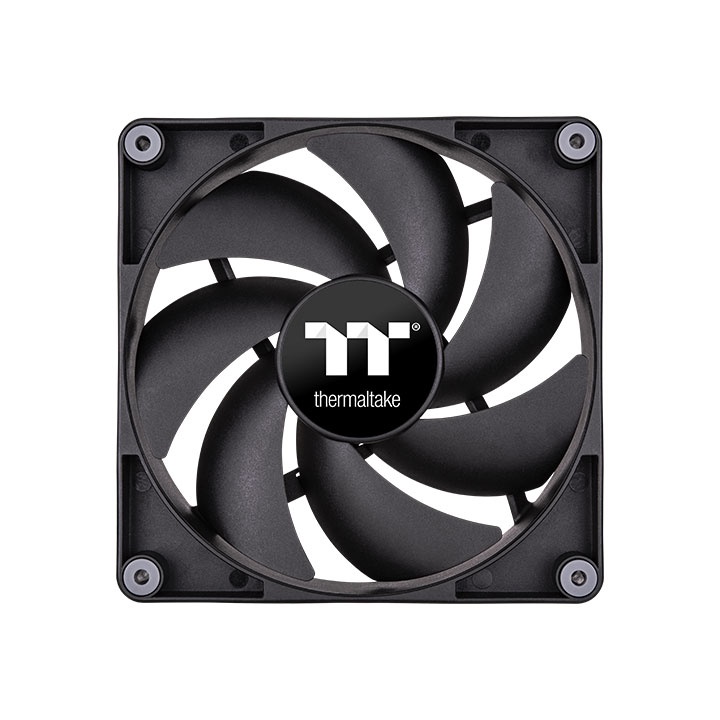

CT140 PC Cooling Fan (2-Fan Pack)
In stock
P/N
CL-F148-PL14BL-A
USD$29.99
Thermaltake’s next generation in PWM fans, the CT Series is designed to fit every PC usage scenario. Fine-tuned fan blades, a reworked daisy-chain system, and a modern design allow you to spend less time building, and more time gaming.
Fine Tuned 7-Blade Design
Less is More
Keep it simple with a straightforward daisy-chain design, by reducing overall cables lengths and connections to the motherboard. To go the extra mile, we have included extensions to allow easy access to any motherboard PWM port.
Better Structure, Solid Performance
Anti-Vibration Mounting Pads
| P/N | CL-F148-PL14BL-A |
|---|---|
| Fan Dimension | 140 x 140 x 25 mm |
| Started Voltage | 5 V |
| Rated Current | 0.17 A (one fan) |
| Rated Voltage | 12 V |
| Power Input | 2.04 W (one fan) |
| Fan Speed | PWM 500~1500 R.P.M |
| Max. Air Pressure | 2.3 mm-H2O |
| Max Air Flow | 77.37 CFM |
| Noise | 30.5 dB-A |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs,25℃ |
| Connector | 4 PIN PWM |
| Other | PWM Cable x 2 |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
CT140 / CT120 Manual
- 2023-03-16
